Caramatic BasicOne

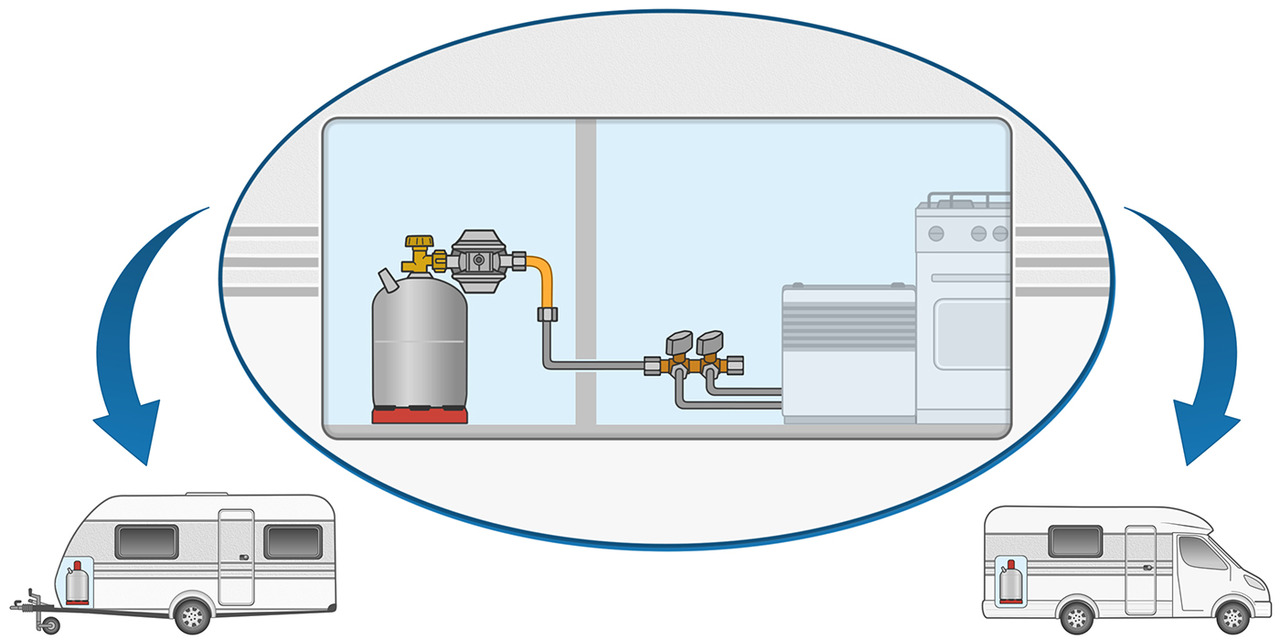

for connection to gas cylinders to regulate the pressure to the nominal pressure of the gas equipment

consisting of: low pressure regulator with integrated safety device against overpressure

version with pressure gauge for leak testing e.g. when the cylinder is replaced
version with extended inlet connector, 90° outlet suitable for VW camper vans with Westfalia fit-out

EC type examination certificate PED (EN 16129, annex D)
EC type examination certificate GGV [ordinance on building land registries] (EN 16129, annex D)
UKCA type examination certificate GGV [ordinance on building land registries] (EN 16129, annex D)

maximum permissible pressure: PS 16 bar

The nominal flows of all the devices must be added together to choose the right capacity stage.
Version type EN61-DS fulfils the requirements of DGUV Regulation 110-010 (German statutory accident insurance, previously DGUV Regulation 79) and is suitable for use in commercially used caravans and motor caravans!

You will find the assembly and operating manuals for this product in the article list below by clicking on this symbol.

Filter

Connection A

Connection B

Outlet pressure

Flow rate

Type name

Capacity stage

Inlet/Outlet

Control device

Packaging

Part no.

KLF

G 1/4 lh M

30 mbar

0.8 kg/h

with gauge

standard packaging

0128010

Shell-F

G 1/4 lh M

30 mbar

0.8 kg/h

with gauge

standard packaging

0128115

KLF

G 1/4 lh M

30 mbar

0.8 kg/h

with gauge

shop packaging

6128027

Shell-F

G 1/4 lh M

30 mbar

0.8 kg/h

with gauge

shop packaging

6128100

Connection A

Connection B

Outlet pressure

Flow rate

Type name

Capacity stage

Inlet/Outlet

Packaging

Part no.

KLF

G 1/4 lh M

30 mbar

0.8 kg/h

standard packaging

0128000

Shell-F

G 1/4 lh M

30 mbar

0.8 kg/h

standard packaging

0128105

KLF

G 1/4 lh M

30 mbar

0.8 kg/h

shop packaging

6128000

Shell-F

G 1/4 lh M

30 mbar

0.8 kg/h

shop packaging

6128101

Connection A

Connection B

Outlet pressure

Flow rate

Type name

Capacity stage

Inlet/Outlet

Control device

Packaging

Part no.

KLF

G 1/4 lh M

30 mbar

0.8 kg/h

with gauge

standard packaging

0128019

Shell-F

G 1/4 lh M

30 mbar

0.8 kg/h

with gauge

standard packaging

0128033

KLF

G 1/4 lh M

30 mbar

0.8 kg/h

with gauge

shop packaging

6128030

Shell-F

G 1/4 lh M

30 mbar

0.8 kg/h

with gauge

shop packaging

6128033

Connection A

Connection B

Outlet pressure

Flow rate

Type name

Capacity stage

Inlet/Outlet

Packaging

Part no.

KLF

G 1/4 lh M

30 mbar

0.8 kg/h

standard packaging

0128009

Shell-F

G 1/4 lh M

30 mbar

0.8 kg/h

standard packaging

0128023

KLF

G 1/4 lh M

30 mbar

0.8 kg/h

shop packaging

6128015

Shell-F

G 1/4 lh M

30 mbar

0.8 kg/h

shop packaging

6128032

Connection A

Connection B

Outlet pressure

Flow rate

Type name

Capacity stage

Inlet/Outlet

Packaging

Part no.

KLF

G 1/4 lh M

30 mbar

0.8 kg/h

standard packaging

0128012

Shell-F

G 1/4 lh M

30 mbar

0.8 kg/h

standard packaging

0128034

KLF

G 1/4 lh M

30 mbar

0.8 kg/h

shop packaging

6128014

Shell-F

G 1/4 lh M

30 mbar

0.8 kg/h

shop packaging

6128034

Connection A

Connection B

Outlet pressure

Flow rate

Type name

Capacity stage

Inlet/Outlet

Packaging

Part no.

KLF

G 1/4 lh M

30 mbar

0.8 kg/h

U-shape

standard packaging

0128045

Shell-F

G 1/4 lh M

30 mbar

0.8 kg/h

U-shape

standard packaging

0128053

KLF

G 1/4 lh M

30 mbar

0.8 kg/h

U-shape

shop packaging

6128005

Connection A

Connection B

Outlet pressure

Flow rate

Type name

Capacity stage

Inlet/Outlet

Control device

Packaging

Part no.

KLF

G 1/4 lh M

30 mbar

1.2 kg/h

with gauge

standard packaging

0128510

Shell-F

G 1/4 lh M

30 mbar

1.2 kg/h

with gauge

standard packaging

0128615

KLF

G 1/4 lh M

30 mbar

1.2 kg/h

with gauge

shop packaging

6128502

Shell-F

G 1/4 lh M

30 mbar

1.2 kg/h

with gauge

shop packaging

6128602

Connection A

Connection B

Outlet pressure

Flow rate

Type name

Capacity stage

Inlet/Outlet

Packaging

Part no.

KLF

G 1/4 lh M

30 mbar

1.2 kg/h

standard packaging

0128500

Shell-F

G 1/4 lh M

30 mbar

1.2 kg/h

standard packaging

0128605

KLF

G 1/4 lh M

30 mbar

1.2 kg/h

shop packaging

6128500

Ital.A

G 1/4 lh M

30 mbar

1.2 kg/h

shop packaging

6128611

Shell-F

G 1/4 lh M

30 mbar

1.2 kg/h

shop packaging

6128600

Connection A

Connection B

Outlet pressure

Flow rate

Type name

Capacity stage

Inlet/Outlet

Control device

Packaging

Part no.

KLF

G 1/4 lh M

30 mbar

1.5 kg/h

with gauge

standard packaging

0129010

Shell-F

G 1/4 lh M

30 mbar

1.5 kg/h

with gauge

standard packaging

0129315

KLF

G 1/4 lh M

30 mbar

1.5 kg/h

with gauge

shop packaging

6129003

Shell-F

G 1/4 lh M

30 mbar

1.5 kg/h

with gauge

shop packaging

6129304

Connection A

Connection B

Outlet pressure

Flow rate

Type name

Capacity stage

Inlet/Outlet

Control device

Packaging

Part no.

KLF

G 1/4 lh M

30 mbar

1.5 kg/h

with gauge

standard packaging

0129015

Komb.A

G 1/4 lh M

30 mbar

1.5 kg/h

with gauge

standard packaging

0129016

Connection A

Connection B

Outlet pressure

Flow rate

Type name

Capacity stage

Inlet/Outlet

Packaging

Part no.

KLF

G 1/4 lh M

30 mbar

1.5 kg/h

standard packaging

0129000

Shell-F

G 1/4 lh M

30 mbar

1.5 kg/h

standard packaging

0129305

KLF

G 1/4 lh M

30 mbar

1.5 kg/h

shop packaging

6129005

Shell-F

G 1/4 lh M

30 mbar

1.5 kg/h

shop packaging

6129303

Connection A

Connection B

Outlet pressure

Flow rate

Type name

Capacity stage

Inlet/Outlet

Packaging

Part no.

KLF

G 1/4 lh M

30 mbar

1.5 kg/h

standard packaging

0129005

KLF

G 1/4 lh M

30 mbar

1.5 kg/h

shop packaging

6129011

Caramatic BasicOne

Advantages and equipment

Conformity

Technical data

Note

Caramatic BasicOnecapacity stage 1, type EN61 with safety pressure relief valve PRVstraight outletwith pressure gauge

Caramatic BasicOnecapacity stage 1, type EN61 with safety pressure relief valve PRVstraight outletwithout pressure gauge

Caramatic BasicOnecapacity stage 1, type EN61 with safety pressure relief valve PRV90° outletwith pressure gauge

Caramatic BasicOnecapacity stage 1, type EN61 with safety pressure relief valve PRV90° outletwithout pressure gauge

Caramatic BasicOnecapacity stage 1, type EN61 with safety pressure relief valve PRVwith extended inlet connector, 90° outletwithout pressure gauge

Caramatic BasicOnecapacity stage 1, type EN61 with safety pressure relief valve PRVU-formwithout pressure gauge

Caramatic BasicOnecapacity stage 2, type EN71 with safety pressure relief valve PRVstraight outletwith pressure gauge

Caramatic BasicOnecapacity stage 2, type EN71 with safety pressure relief valve PRVstraight outletwithout pressure gauge

Caramatic BasicOnecapacity stage 3, type EN61-DS with overpressure safety device S2SRstraight outletwith pressure gauge

Caramatic BasicOnecapacity stage 3, type EN61-DS with overpressure safety device S2SRstraight outletwith pressure gauge and visual indicator

Caramatic BasicOnecapacity stage 3, type EN61-DS with overpressure safety device S2SRstraight outletwithout pressure gauge

Caramatic BasicOnecapacity stage 3, type EN61-DS with overpressure safety device S2SR90° outletwithout pressure gauge
