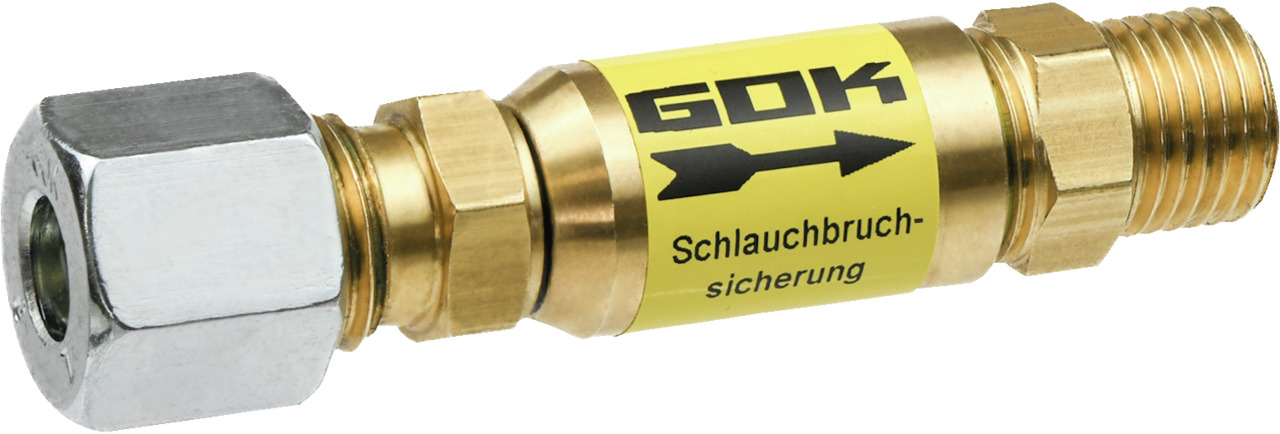

Low pressure excess flow valve for slide-out modules
for installation in the piping in a motor caravan or caravan, for the securing of hose assemblies
- prevents gas escape in case the hose assembly is damaged or becomes loose and closes the gas flow when the nominal flow rate is exceeded by 10%
- automatic excess flow valve SBS/AU:
opens automatically, which keeps gas leaks to a minimum and means delayed opening in the case of long hose assemblies - especially suitable for the connection of cooking appliances that have to be moved from the transport position to the functional position
- especially suitable for connections in the case of slide-out modules on road vehicles
- EC type examination certificate GAR
- maximum permissible pressure: PS 16 bar
- Can only be used with a hose assembly that has a maximum length of 750 mm.
- Can only be used in combination with devices that have to be moved from their transport position to their functional position, or in the case of slide-out modules on road vehicles.
Filter
Connection A
Connection B
Outlet pressure
Flow rate
Packaging
Part no.
Article name
Packaging
Part no.
